UXFileChooser

UXFileChooser is the model behind an open/save file panel: the current directory as a UXPath, a backend-supplied listing of its entries, an extension filter, and the prompt string. The backend provides the panel view and reads the directory; this class holds the testable state it drives.

The filter rule: directories always show; files show only when they match an allowed extension (an empty filter accepts all). Navigation is pure UXPath editing: entering a folder appends a component, and going up deletes one. The whole model can be tested with no filesystem.

#use <UXKit>

Where you see it

Section titled “Where you see it”

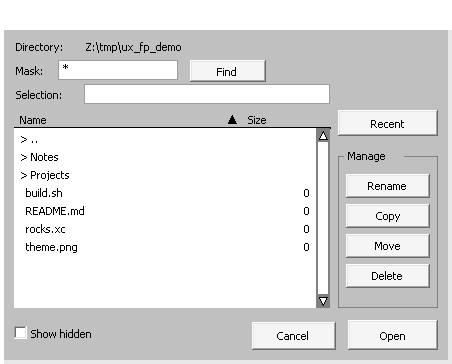

The chooser has no view of its own. It is the state behind whichever panel runs. Call UXOpenPanel.run() and you get the platform’s own dialog where one exists, or the toolkit-drawn UXFilePanel driving this model where none does. Two captures of that panel follow:

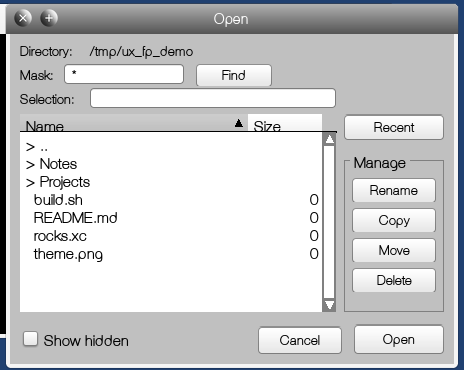

The toolkit file panel on GEM

The toolkit-drawn UXFilePanel (GEM has no OS file selector): mask + Find, the sortable Name/Size listing with folders first, Recent, and the Manage group. Every control is a neutral widget over this model.

Overview

Section titled “Overview”
UXFileChooser* fc = new UXFileChooser();
fc.setDirectory(UXPath.parse((u8*)"/home/user"));
fc.allowExtension((u8*)"png");
fc.allowExtension((u8*)"jpg");
fc.setEntries(listingFromBackend);
Array* show = fc.visibleEntries();     // dirs + matching files only

Topics

Section titled “Topics”

Navigation · directory · setDirectory · enter · goUp Listing · setEntries · visibleEntries · visibleCount · acceptsFile · allowExtension Open vs save · setSaveMode · setSaveName · setPrompt · resultPath

directory / setDirectory

Section titled “directory / setDirectory”
UXPath* directory(void)
void    setDirectory(UXPath* p)

Where the chooser is browsing.

enter

Section titled “enter”
void enter(u8* dirname)

Appends the folder to the path and clears the entries. The backend then re-lists the new directory.

goUp

Section titled “goUp”
void goUp(void)

Deletes the last component and clears the entries.

setEntries

Section titled “setEntries”
void setEntries(Array* e)

The backend hands over the raw directory listing (UXFileEntry items).

visibleEntries

Section titled “visibleEntries”
Array<UXFileEntry>* visibleEntries(void)

The filtered listing: every directory, plus the files that pass the extension filter.

visibleCount

Section titled “visibleCount”
i32 visibleCount(void)

How many entries pass the filter.

acceptsFile

Section titled “acceptsFile”
bool acceptsFile(u8* name)

The filter itself: case-insensitive extension match, or every file when the filter is empty.

allowExtension

Section titled “allowExtension”
void allowExtension(u8* ext)

Adds an accepted extension (without the dot).

setSaveMode

Section titled “setSaveMode”
void setSaveMode(bool on)

Switches to save semantics. The default “Open” prompt becomes “Save” (a custom prompt is kept).

setSaveName

Section titled “setSaveName”
void setSaveName(u8* n)

The proposed file name a save panel returns.

setPrompt

Section titled “setPrompt”
void setPrompt(u8* p)

The customisable button/title string.

resultPath

Section titled “resultPath”
u8* resultPath(u8* chosenName)

The full path the panel returns: the directory plus the chosen name, or plus the save name in save mode.
